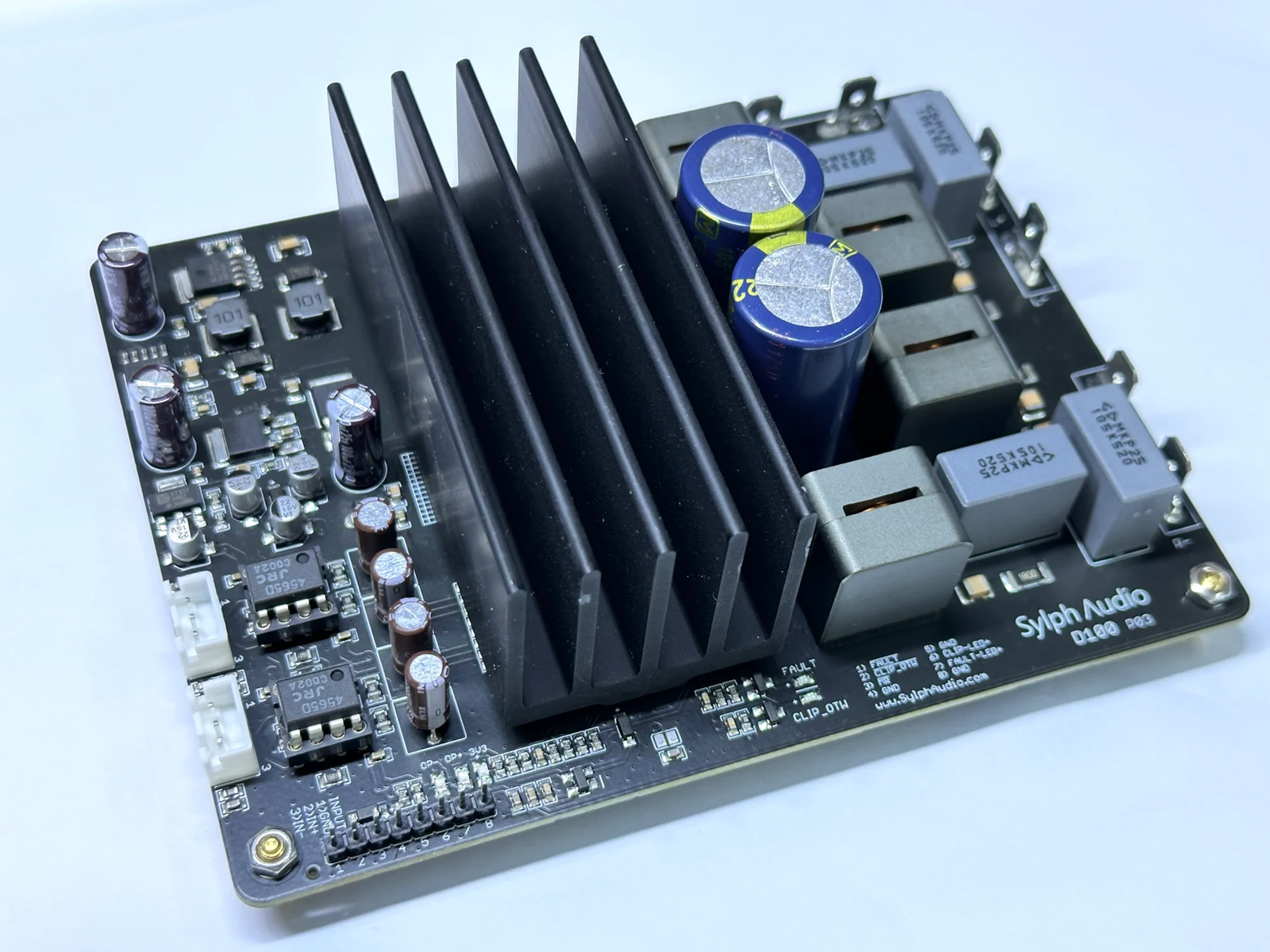

[D100 P03] Stereo Class-D RTR Kit

Version P03, changes from version P02 includes:
PFFB or Non-PFFB operation
Input coupling caps is Elna Silmic II (Same as P01)
29dB Non-PFFB gain on SE input (Same as P01)

****

Package Includes
1 pc Sylph-D100 P03 stereo module.
2 pc female 2.54 mm 3 pin connector.

Specifications
Supply Voltage: 24V DC min to 38V DC max
Unclipped Power (38V Supply): 50W-8Ω, 100W-4Ω
Power at 1% THD+N: 70W 8Ω, 125W 4Ω
Voltage Gain: BAL 23dB (14V/V), SE 29dB (28V/V)
Input configuration: SE / Balanced (solder jumper)
Load impedance: 4Ω or 8Ω
Idle dissipation: ~6.5W at 36V DC
Footprint: 133mm x 100mm x 45mm (L * W * H)
Gross packed weight: 400g

Recommended Power Supply
(NOT INCLUDED)
– 36V to 38V DC Single supply SMPS 200W or higher.
– DO NOT use power supply with split rails.
– Mean Well LRS-200-36 or LRS-150-36
– Use 34V DC for unregulated linear supplies
